Mult-Service Hydraulic/Electric Portable Mule

GPM/PSI: 5000 PSI
Manufacturer: Sun Electric
Shown as: Used
NSN: 1730-855-6108
Product Type:   Mule
Type: MSU-1
Part No:
Model No:
  • 3 in 1 unit
  • Unit flow divider circuit for test of 2 separate aircraft at one time or dual system operation

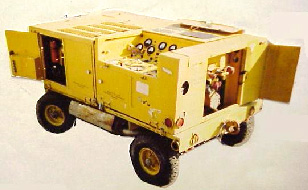

    These units are portable mules, self-propelled and towable, with 400 cycle 30 KVA AC power and 800 AMPS, 30 VDC generator for staring and servicing helicopters and fixed wing aircraft.

    This unit can be used with many different aircraft or helicopters, use as a GPU or as a hydraulic mule.

    Technical Data

    Kline pump PVH6105A2 (1210 series) 2.14 cubic in. rev., 5000 PSI 3600 RPM max., 20 GPM @ 3000 PSI continuous duty, 20 GPM @ 4000 PSI intermittent duty.

    Sun Electric motor generator frame 324Y, PN 506-504, 30 KVA, 400 cycle, 120/208 Vac, 3 phase, 28 VDC, 800 AMPS

    Ceralus Diesel engine 3 cylinder, 2400 RPM, 3 micron ABS, 30 GPM, 5000 PSI hydraulic filter.

    Four (4) separate control stations on one (1) common panel:

  • Diesel engine control
  • A/C power out control
  • D/C power out control
  • Hydraulic system control

    Can be offered fully re-manufactured and warranted on request.
    Available for inspection at our Los Angeles facility.
    Approx. Dimensions: 48
    ALS ID: MUH-129
    Approx. Weight:

    Units Subject To Prior Sale
