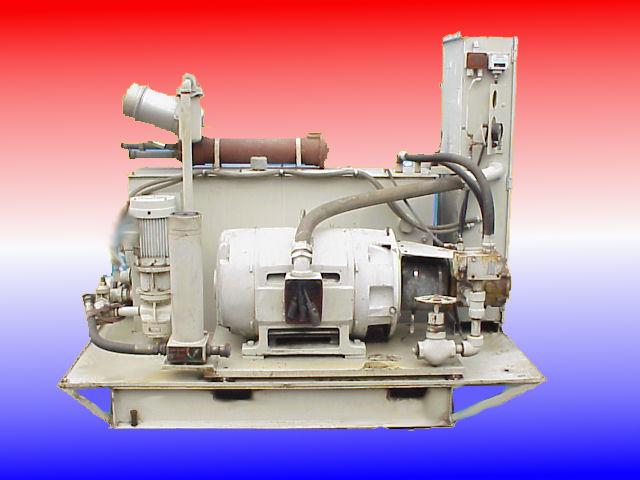

Hydraulic Power Unit
|
|
Manufacturer: |
Paul Monroe
|
|
|
|
|
|
|
|
|
|
Denison Pump
900 Series pump number PF09-043-51L
Main Electric Motor
Manufactured: General Electric
Part No.: 5K447YK331
HP: 150
PH: 3
Cycle: 60
Vac: 460
RPM: 1175
Boost Electric Motor
Manufactured: Lincoln Electric
Part No.: 2523C
HP: 6
PH: 3
Cycle: 60
Vac: 230\460
RPM: 1175 RPM
Frame No.: 675159
one each Rexroth relief valve no. DRVH25DA5600 & system pressure gauge 0-5000 PSI and March needle valve
Shell & tube type heat exchanger, skid type unit with 300 gallon reservoir
Unit can be converted to variable volume pressure compensated pump, price on request.
High pressure filter, 50 GPM, 5000 PSI, Manufacturer Schroeder # LF50-2K3-PD
Low pressure filter, 50 GPM, 300 PSI, Manufacturer Schroeder # LF-1-1K-10PD
Both filters have dirt alarm indicator.
|
|
Approx.
Dimensions: |
9" L x 6" W x 7" H
|
|
|
|
|
Units
Subject To Prior Sale
