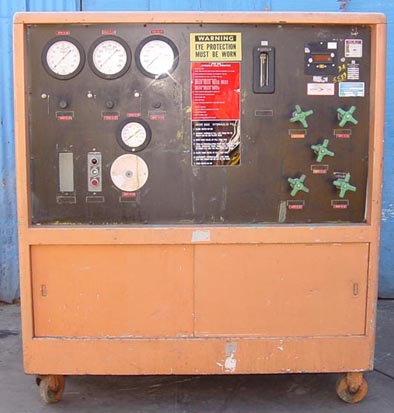

Hydraulic Power Unit

PUH-136JVV
GPM/PSI: 10 @ 5000
Fluid:
Manufacturer: Royal Jet
HP:
Shown as: N.A.
NSN:
Product Type:   Power Unit
Type: MA-3
Part No:
Model No: 500004

Shown used condition may be purchased overhauled.

Description/Function of unit

Pump

600 series Denison
Model PA-072-562 Axial piston

  • Variable displacement
  • Pressure compensated

    Motor

    HP: 20
    RPM: 1800
    Vac: 220/440
    PH: 3
    HZ: 60
    Frame: AVO-286V

  • Magnetic starter and electric disconnect switch, start/stop switch
  • 15 foot power cord with plug

    Gauges

    4½", 0-5000 PSI
    6", 0-100 PSI
    6", 0-1000 PSI
    6", 0-5000 PSI

  • Digital temperature gauge
  • High pressure flowmeter 0-100% and 0-5 GPM
  • Heat exchanger 5" x 18", 2 pass
  • Piston accumulator ½ gallon
  • ¾" T-type canister filter, 3000 PSI (4 each)
  • Denison relief valve R4V06-5A3-10-A1
  • Reservoir 25 gallon, stainless steel
  • ¼" Needle valve, 3000 PSI (3 each)
  • ¾" Needle valve, 5000 PSI (5 each)
  • 5" casters, 2 rigid, 2 solid, plus 1 brake

    A work sink can be mounted on the front of the console for testing components.

  •
    Approx. Dimensions: 64" L x 36" D x 72" H
    ALS ID: PUH-136JVV
    Approx. Weight: 800 lbs.
    Location:

    Units Subject To Prior Sale
